USB tiny ISP v3.0 Bootloader Programmer

FOB Reference Price:Get Latest Price
US $6-7.53 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-03T012
Product name:
USB tiny ISP v3.0 Bootloader Programmer
Iten No:
RB-03T012
ISP interface:
6 pin and 10 pin
Size:
27mm x 56.8 mm
Weight:
28g
Application:
burning onto the chips
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard box
Port
shenzhen
Lead Time :
3-5 days according to the quantity
Description

The ALSRobot USBtinyISPv3.0 bootloader is a small piece of software that we've burned onto the chips that come with your Arduino boards. It allows you to upload sketches to the board without external hardware.

This is documentation for a simple open-source USB AVR programmer and SPI interface. Its cost is low and it is easy to make and works great with avrdude. It is a perfect product for students and beginners, or as a backup programmer.

The project is based on the USB tiny code and design. You can build this design using the schematic and firmware.

Specifications
  • ISP interface : six pin and 10 pin
  • Size : 27mm x 56.8 mm
  • Module Weight : 28g
  • Power supply Option : external power supply and USB power supply (if choose external power supply ,please take off the jump line PWR cap)
pictures
RB-03T012USBtinyISP4-800x600



ALSRobotBase USB tiny ISP v3.0 Bootloader Programmer



 RB-03T012USBtinyISP2-800x600

 ALSRobotBase USB tiny ISP v3.0 Bootloader Programmer back side

RB-03T012USBtinyISP3-800x600

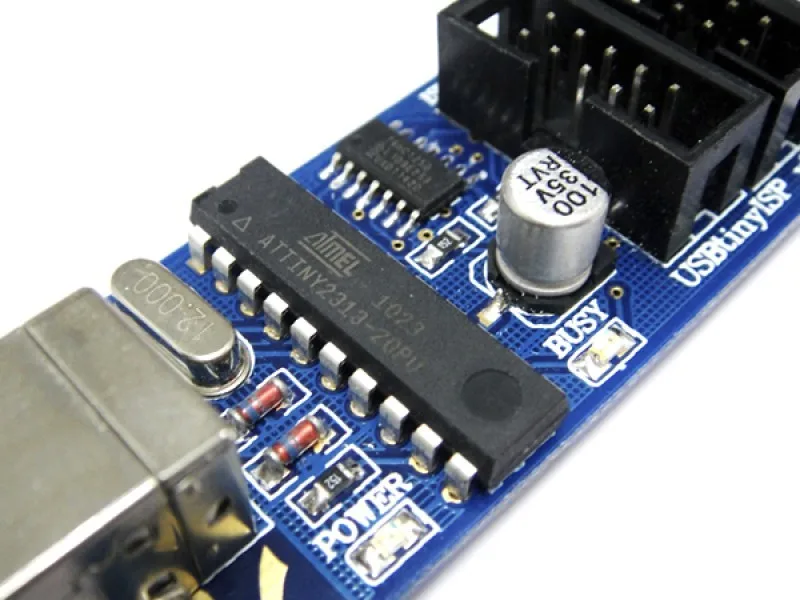

  ALSRobotBase USB tiny ISP v3.0 Bootloader Programmer details
