IIC/I2C LCD1602/liquid crystal display/lcd modules arduino compatible

FOB Reference Price:Get Latest Price
US $10.19-12.74 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RobotBase
Model Number:
RB-05L004
weight:
39g
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
box
Port
China
Lead Time :
3-5 days according to order

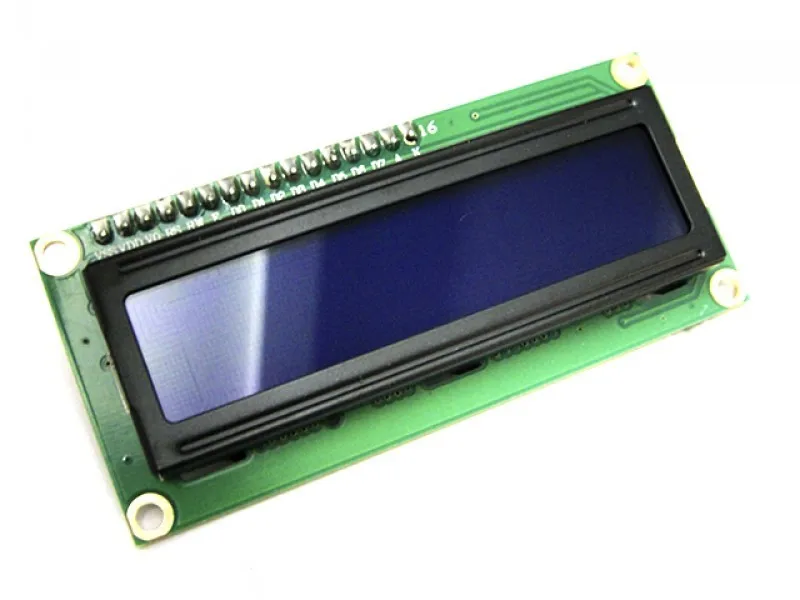

I2C/TWI LCD1602 Module


Introduction



2013 latest IIC LCD1602 module, new high-quality 2 lines 16 characters LCD, contrast control knob, backlight selector switch and IIC communication interface. For beginners, the LCD module simplify the circuit in the true sense, you can insert it into IIC interface on  sensor shieldv5.0 for Arduino,connected with 4p sensor cable, you can complete identification and record display of sensor data after programmed by  controller(Arduino-Compatible).





Specifications



1, module addresses: 0x27  IIC LCD1602 module

2, power supply voltage: + 5V  IIC LCD1602 module

3, backlight, power indicator, contrast control potentiometer, backlight selector  switch

4, concise design, connected with 4p sensor cable

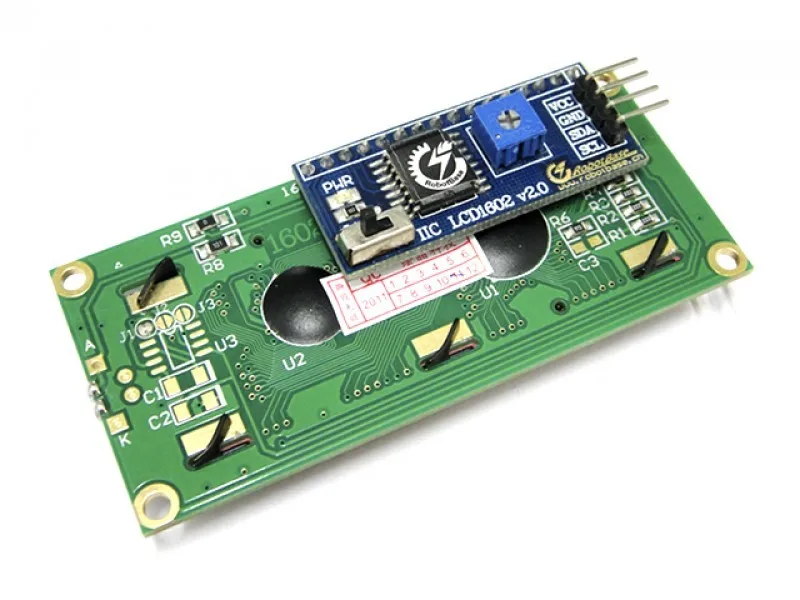

Contrast control knob


Backlight selector switch




IIC communication inteface




Connected with  sensor shield v5.0 for Arduino







Application videos(Copy link into browser)

Testing voltage value

http://u.youku.com/user_show/uid_robotbase



Application blogs(Copy link into browser)

Arduino hobbyist Rebecca’s blog(Palace for beginners)

http://blog.sina.com.cn/arduino
