ALSRobot XBee Explorer USB Shield Zigbee Communication USB Module

FOB Reference Price:Get Latest Price
US $8.9-11.13 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-03T038
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Antistatic Bag,Box
Port
Shenzhen/Shanghai
Lead Time :
5-15 days according to your order



XBee Explorer USB Shield

RB-03T038-XBee Explorer USB-6




Product Description



This Xbee Explorer USB Shield is a simple to use, USB to serial base unit for the XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.

note:Handles 3.3V regulation, signal conditioning, and basic activity indicators (Power, RSSI and DIN/DOUT activity LEDs)making it easier to work with XBee radios.

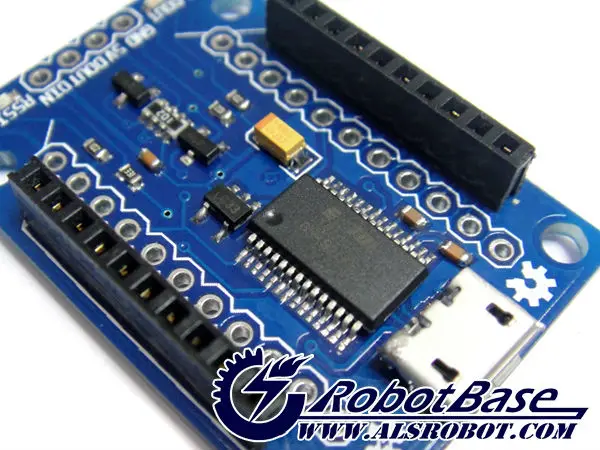

RB-03T038-XBee Explorer USB-5

layout clearly PCB adopt with brand new electronic components



PC connection to the XBee adapters directly through the USB cable, easy to configure XBee module or as a data transmission using. 2.54 has reserved space on the pin board for your convenience subsequent extensions.



FT232RL is a USB to serial chip, this chip is widely used in the SCM system without USB interface, expansion for USB port. Such as the well-known Arduino is also used this chip. This module is for XBee or BTBee link on PC design, through this module you can use a computer to control XBee or BTBee, without going through a microcontroller board.



RB-03T038-XBee Explorer USB-8

each interface has clearly marked



Specification
1.Product Name:XBee Explorer USB
2.Item No.:RB-03T038
3.Operating Voltage:5V
4.Size:35 X 28 mm
5.Application Range:3.3V XBee
6.Character:Transmission with high baud rates, stable performance, compatible with all XBee modules

RB-03T038-XBee Explorer USB-2

easy and convenient Plug together to use

RB-03T038-XBee Explorer USB-3

the best partner of XBEE
