RB Bluetooth Transceiver wireless communication module

FOB Reference Price:Get Latest Price
US $39.9-43.8 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Heilongjiang, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-03T008A
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
BOX
Port
China ports optional
Lead Time :
3-15 days according to order

 RB Bluetooth Transceiver

RB Bluetooth ModuleRB-03T008



Introduction:



RB Bluetooth Transceiver, as a Bluetooth wireless communication module, is easy to use, lightweight and has high price value. Compared with the same products abroad, it is smaller but more powerful and special designed. Features are as follows:1, Sandwich plate design protect Bluetooth chip from being damaged by static electricity generated by users. 2, Wide power supply range: DC+3.3V/+5V~+12V and can be applied to various micro controller unit, Arduino, BS2 and other micro controllers. 3, LED indicator, switched on by micro DIP (ON for connect/OFF for power save mode), saves power. And clear Search(Power)/Connect indicator makes it easy to judge the working state.  4, Two lines of pin ports provide convenience to secondary development. Straight and bend pin headers and jumper cables can be mounted. It also can be applied to development board , controller, etc.

RB Bluetooth ModuleRB-03T008 (1)

RB Bluetooth Transceiver

Compatible with many bluetooth adapters


Specifications
1, Bluetooth: CSR BC417143
2, Bluetooth Protocol Specification: Bluetooth Specification v2.0+EDR
3, Transmission frequency: 2.4~2.48GHz unlicensed ISM band
4, USB protocol: USB v1.1/2.0
5, Modulation system: GFSK(Gaussian Frequency Shift Keying)
6, Transmission power: ?4dBm, Class 2
7, Transmission distance: 20~30m in free space
8, Receiving sensitivity: ?-84dBm at 0.1% BER
9, Transmission rate: Asynchronous: 2.1Mbps(Max) / 160 kbps;Synchronous: 1Mbps/1Mbps
10, Security feature: Authentication and encryption
11, Support profiles:Bluetooth serial port
12, Serial port default setting: 115200/N/ 8/1
13, LED indicator: Search(Power)/Connect
14, Input power: +5V~+12VDC/+3.3VDC 50mA
15, Working temperature: ?20°C~+55°C
16, Dimensions: 30mm x 30mm RB Bluetooth Transceiver
17, Weight: 67g RB Bluetooth Transceiver

RB Bluetooth ModuleRB-03T008 (4)

Sandwich plate design,protect chip from static damage





RB Bluetooth ModuleRB-03T008 (5)

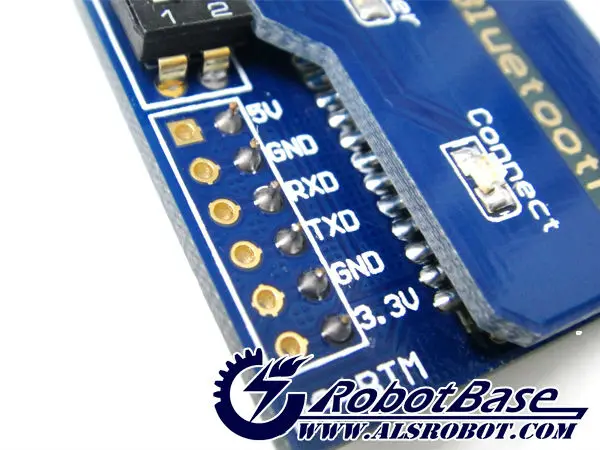

Biserial pins,hommization design





RB Bluetooth Transceiver

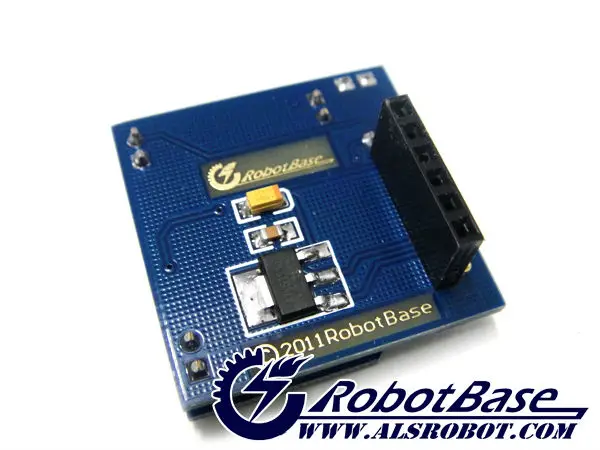

Thicken gold-plate board,selected material





RB Bluetooth Transceiver

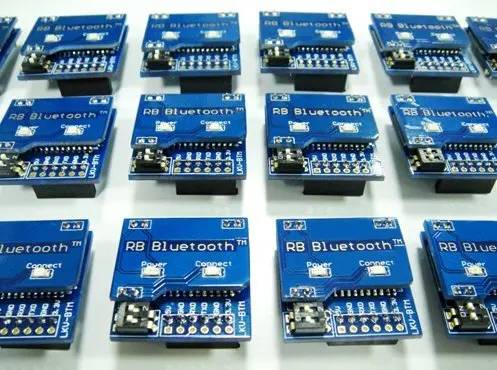

Abundant supply





Related Product:





IR Receiver and Transmiter Remote Control Kit For Arduino

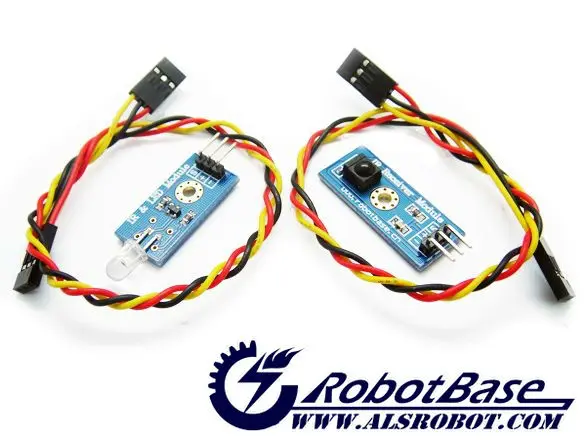

IR Transmitter and Receiver KitRB-03T002
