PIR Motion Sensor for Arduino Micro Controller

FOB Reference Price:Get Latest Price
US $1.36-1.39 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobotBase
Model Number:
RB-02S079
Usage:
Ray Sensor
Theory:
infrared
Output:
Analog Sensor
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
antistatic bag
standard box
Port
Shenzhen
Lead Time :
1-3 working days according to order

PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don't wear out. For that reason they are commonly found in appliances and gadgets used in homes or businesses. They are often referred to as PIR, "Passive Infrared", "Pyroelectric", or "IR motion" sensors.

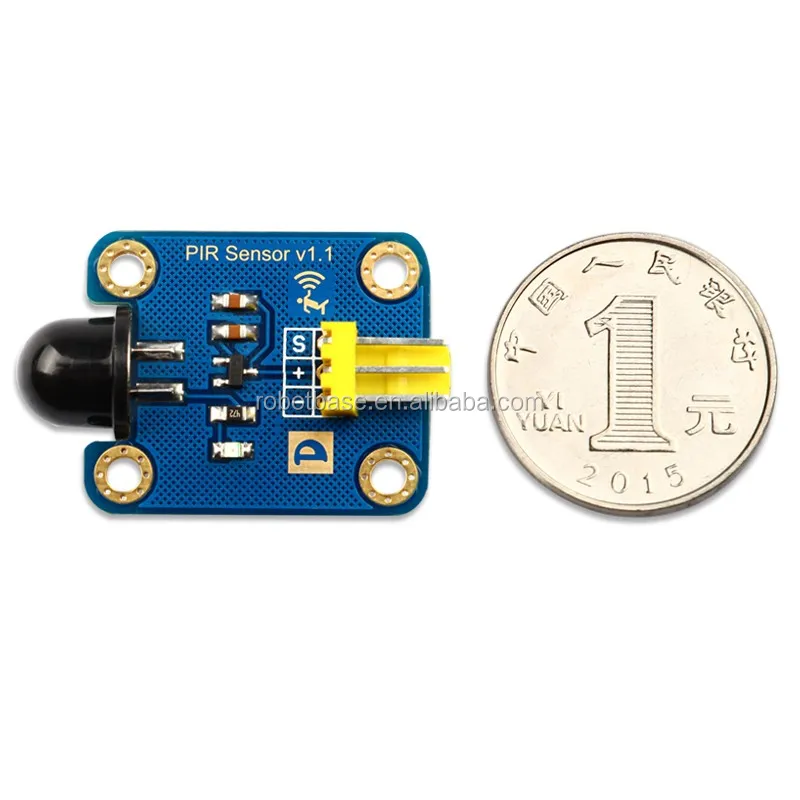

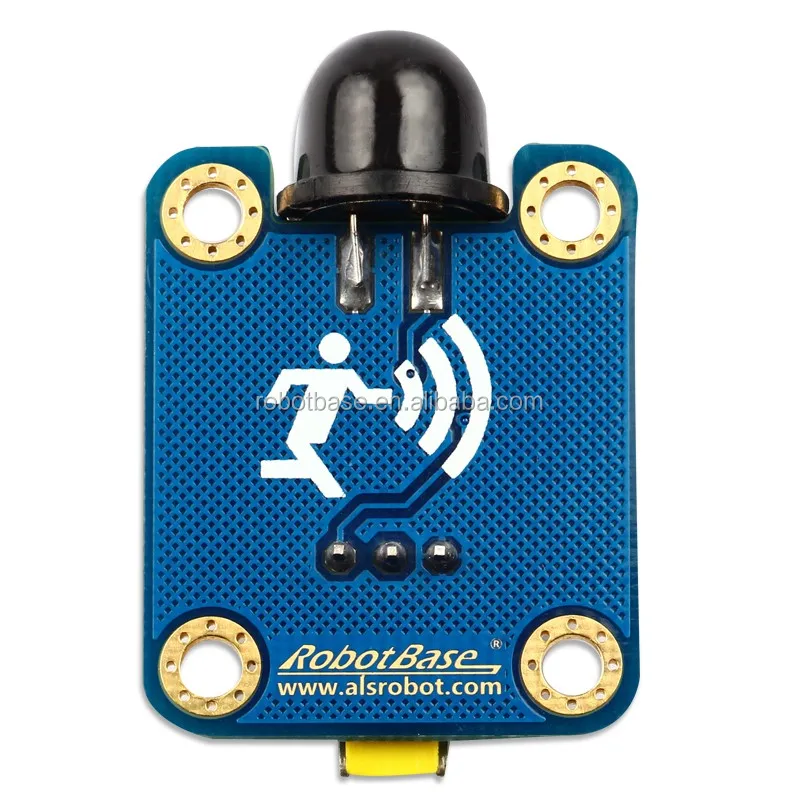

This PIR (Motion) Sensor can detect the infrared signals from human body or other animals and triggers with movement. So it can be applied to a variety of scenarios which require motion detection.Conventional pyroelectric infrared sensors require body pyroelectric infrared detector, integrated chipsets, complex peripheral circuit. So the size is slightly big, circuit is complex, and reliability is slightly lower.We bring this new pyroelectric infrared motion sensor which is specially designed for your Arduino projects, an integrated digital body pyroelectric and infrared sensor, with small size, high reliability, low power consumption, and simple peripheral circuit. Very simple to use in any project.



  • Input Voltage: 3.3~5V
  • Working Current: <20mA
  • Working Temperature: -20~85℃
  • Output Voltage:High Electrical Level 3V,Low Electrical Level 0V
  • Output Delay Time(High Electrical Level):2.3~3min
  • Detection Angle: 100°
  • Detection Distance: 6Meters
  • Output Indicator Light: High Electrical Level Light
  • Output Pin Limited Current:1mA
  • Output Interface: Digital Interface
  • Module Size:30mm×23mm
  • Module Weight: 4g

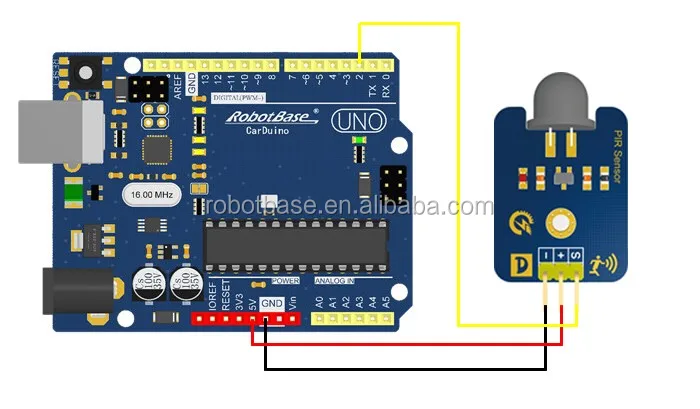

  • Pin Definitions: S:signal),+:(VCC),-:(GND)

Application:

  • Moving human detection.
  • Occupancy detection.
  • Security systems.
