Raspberry Pi 3 Model B Controller A 1.2GHz 64-bit quad-core ARMv8 CPU

FOB Reference Price:Get Latest Price
US $40.65-52.5 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
D/C:
Raspberry Pi3 Controller
Package:
Raspberry Pi3 Controller
Model Number:
RB-01C119
Type:
Drive IC
Brand Name:
ALSRobot
Place of Origin:
Guangdong, China (Mainland)
Products Name:
Raspberry Pi3 Controller
Application:
Raspberry Pi3 Controller
Item No.:
RB-01C119
RAM:
1GB
USB ports:
4
Brand:
Raspberry Pi
Original:
UK
Weight:
52g
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Antistatic bag then Box
Port
Shenzhen
Lead Time :
Shipped in 5 days after payment

The newest Raspberry Pi 3  has an identical form factor to the previous Pi 2 (and Pi 1 Model B+) and has complete compatibility with Raspberry Pi 1 and 2.



We recommend the Raspberry Pi 3 Model B for use in schools, or for any general use. Those wishing to embed their Pi in a project may prefer the Pi Zero or Model A+, which are more useful for embedded projects, and projects which require very low power.



The Raspberry Pi 3 is here to provide you with the same Pi as before but now with double the ram and a much faster processor. The credit-card sized computer is capable of many of the things that your desktop PC does, like spreadsheets, word-processing and playing high-definition video and games. It can run several flavors of Linux (and even Windows 10 free-of-charge) and is being used to teach kids all over the world how to program.



The GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode and is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute. What’s that all mean? It means that if you plug the Raspberry Pi 3 into your HDTV, you could watch BluRay quality video, using H.264 at 40MBits/s.



The Raspberry Pi 3’s four built-in USB ports provide enough connectivity for a mouse, keyboard, or anything else that you feel the RPi needs, but if you want to add even more you can still use a USB hub. Keep in mind, it is recommended that you use a powered hub so as not to overtax the on-board voltage regulator. Powering the Raspberry Pi 3 is easy, just plug any USB power supply into the micro-USB port. There’s no power button so the Pi will begin to boot as soon as power is applied, to turn it off, simply shut down the Pi 3, then remove power. The four built-in USB ports can even output up to 1.2A enabling you to connect more power hungry USB devices (This does require a 2Amp micro USB Power Supply).



On top of all that, the low-level peripherals on the Pi make it great for hardware hacking. The 0.1" spaced 40-pin GPIO header on the Pi gives you access to 27 GPIO, UART, I2C, SPI as well as 3.3 and 5V sources. Each pin on the GPIO header is identical to its predecessor the Model B+.



  • Broadcom BCM2837 64bit ARM Cortex-A53 Quad Core Processor SoC running @ 1.2GHz
  • 1 GB RAM
  • 4 x USB2.0 Ports with up to 1.2A output
  • Expanded 40-pin GPIO Header
  • Video/Audio Out via 4-pole 3.5mm connector, HDMI, CSI camera, or Raw LCD (DSI)
  • Storage: microSD
  • 10/100 Ethernet (RJ45)
  • BCM43143 WiFi on board
  • Bluetooth Low Energy (BLE) on board
  • Low-Level Peripherals:
  • 27 x GPIO
  • UART
  • I2C bus
  • SPI bus with two chip selects
  • +3.3V
  • +5V
  • Ground
  • Power Requirements: 5V @ 2.4 A via microUSB power source
  • Supports Raspbian, Windows 10 IoT Core, OpenELEC, OSMC, Pidora, Arch Linux, RISC OS and More!
  • Dimensions: 85mm x 56mm x 17mm

Raspberry Pi 3 Model B Controller A-Front Side

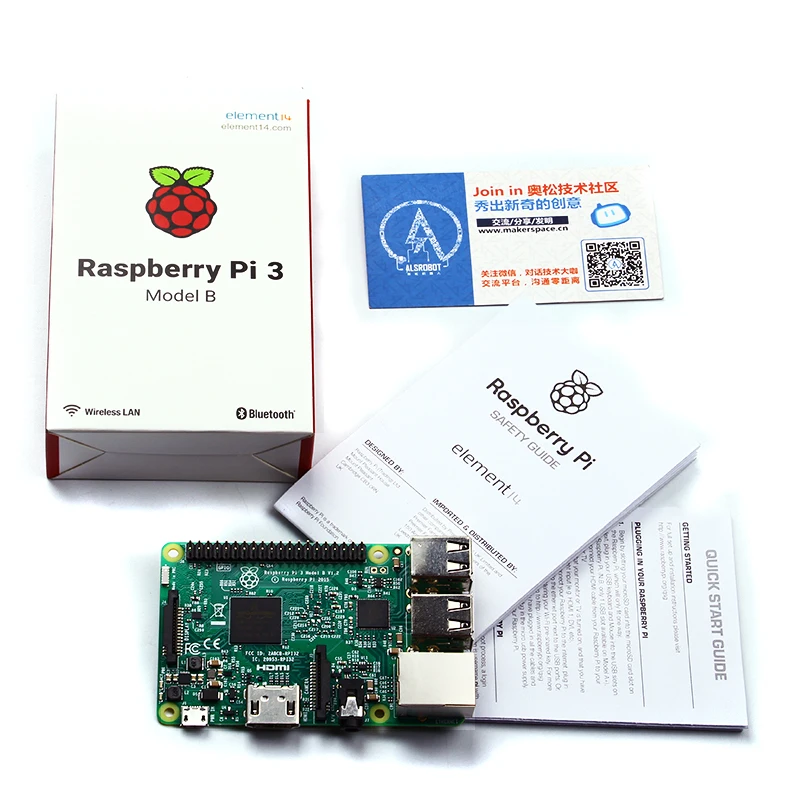

Raspberry Pi 3 Model B Controller A-packing details
